RS-16B Series

RS-16B / UT-16B Guitar System
RS-16B / UT-16B Guitar System

RS-16B / UT-16B Guitar System

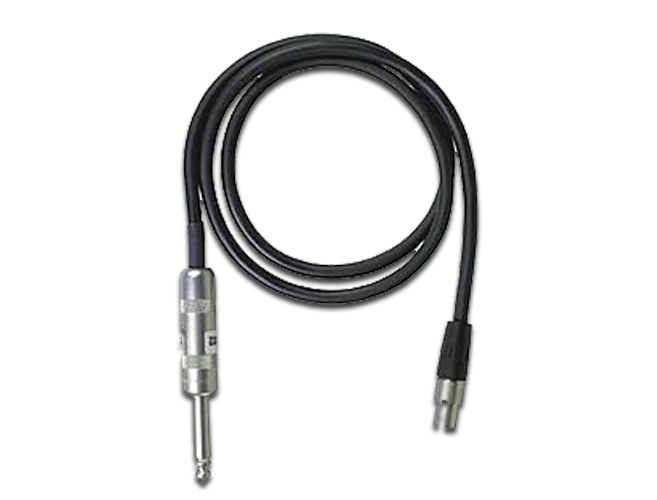

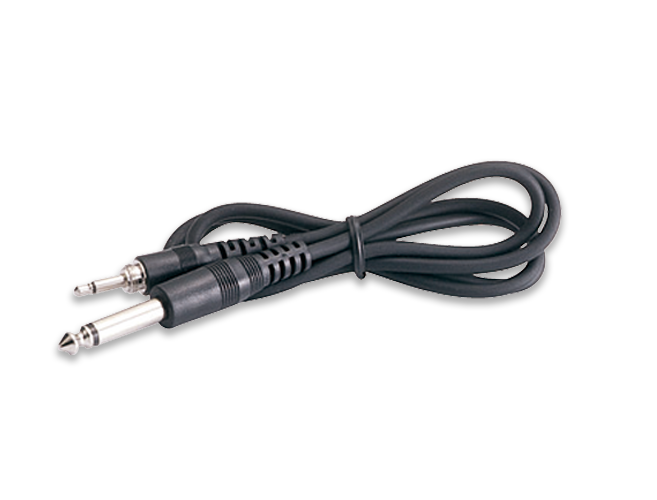

RS-16B Receiver / UT-16B Bodypack Transmitter / CB-402 Guitar Cable

  • Compact, lightweight and portable design.
  • Handily function for quickly setup.
  • Clear channel LED display.
  • Preset 8 selectable channels.
  • Adjustable 2-step squelch function for minimizing external RF interference.
  • With two 3.5mm jack for connecting a headphone, mixer or amplifier.
  • Multiple receivers to one transmitter are available.
RS-16B
Receiving Mode
Non-Diversity
Frequency Range
UHF520 ~ 937.5MHz (Regionally Selected)
Display
7 Segment display shows channel
Preset Channel
8 channel
Oscillator
PLL Synthesized
S/N Ratio
>100dB, at 20KHz deviation and 60dBµV antenna input
AF Response
50Hz to 18KHz
T.H.D.
<1% (at 1KHz)
Dynamic Range
>100dB
Image & Spurious Rejection
70dB minimum
Receiving Sensitivity
At 5µV over 70dB S/N ratio
IF Frequency
1st: 243.95MHz , 2nd: 10.7MHz
Tone Signal
32.768KHz
Power Supply
DC 12V
Audio Output
Ø3.5mm phone jack
Current Consumption
120 ± 10mA
Case
Bodypack Receiver
Dimension(mm) WxHxD
65 x 97 x 24
Net Weight
Approx. 86 g
UT-16B
Frequency Range
UHF520 ~ 937.5MHz (Regionally Selected)
Channel Select
Button select
Display
LED shows the battery life
RF Power Output
10mW (max.)
Frequency Stability
±0.005%
Spurious Emission
>60dB below carrier frequency
Battery
DC3V (1.5V x 2 AA batteries)
Current Consumption
120 ± 10mA
Dimension(mm) WxHxD
65 x 97 x 24
Net Weight
Approx. 84 g
