UXD-120 Series
UXD-120 / UF-62C Vocal System
UXD-120 Receiver / UF-62C Handheld Microphone
- True diversity transmission range: up to 100 meters / 300 feet.
- Clear VA LCD displays frequency, group, channel and AF/RF levels.
- Automatically channels scan function.
- Mix output function.
- Preset 8 frequency group containing 12 channel each.
- Up to 8 systems can be used simultaneously.
- The SQ control dial for adjusting the audio output level.
- Detachable receiver antennas for using with professional antenna systems.
- Balanced XLR and unbalanced 1/4” jack outputs.
UXD-120
- Receiving Mode
- True Diversity
- Frequency Range
- UHF520 ~ 937.5MHz (Regionally Selected)
- Display
- VA LCD displays frequency, group, channel,
RF & AF levels, scan, preset, SYNC
- Preset Channel
- 8 Group: 12 compatible channels in each group
- Oscillator
- PLL Synthesized
- S/N Ratio
- ＞100dB, at 20KHz deviation and 60dBµV antenna input
- Modulation
- FM
- T.H.D.
- ＜1% (at 1KHz)
- Dynamic Range
- ＞110dB
- Power Supply
- DC12V
- Case
- Half 19” EIA Rack Metal Case
- Dimension(mm) WxHxD
- 200 x 42 x 183
- Net Weight
- Approx. 917 g

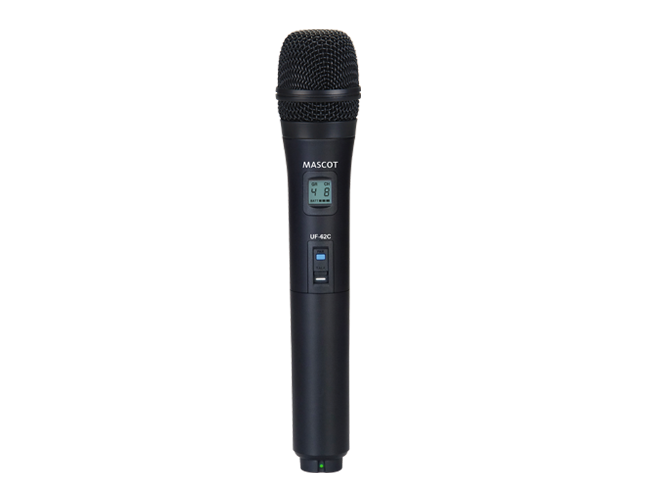

UF-62C
- Frequency Range
- UHF520 ~ 937.5MHz (Regionally Selected)
- Channel Select
- SYNC with receiver
- Display
- LCD shows channel and the battery life
- RF Power Output
- 10mW (max.)
- Frequency Stability
- ±0.005%
- Spurious Emission
- ＞60dB below carrier frequency
- Battery
- 800mAh lithium battery
- Current Consumption
- 100 ± 10mA
- Net Weight
- Approx. 310 g
