Bodypack Transmitter
DB-100 Bodypack Transmitter
DB-100 Bodypack Transmitter
- SYNC function for quickly channel setting.
- Gain settings for differrent audio input source.
- Convenient mute switch function.
DB-100
- Frequency Range
- UHF520~937.5MHz
- Channel Select
- SYNC with receiver
- Display
- LCD Display
- RF Power Output
- 10mW
- Modulation
- FSK
- Gain Setting
- 0 dB / -10 dB / -20 dB
- Battery
- DC 3V (1.5V x 2 AA batteries)
- Current Consumption
- 190 ± 10mA
- Battery
- Minimum 8 hours of operation with fully charged (depending on the battery quality)
- Dimension(mm) WxHxD
- 65 x 97 x 25
- Net Weight
- Approx. 86 g
-
DR-100 / DB-100 Guitar System
DR-100 Receiver /DB-100 Bodypack Transmitter/ CB-100 Guitar Cable
-

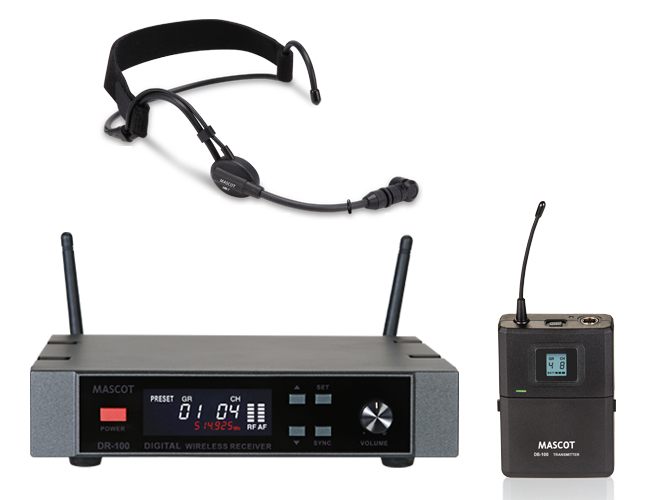

DR-100 / DB-100 Headset System
DR-100 Receiver /DB-100 Bodypack Transmitter / HM-11 Headset Microphone
-

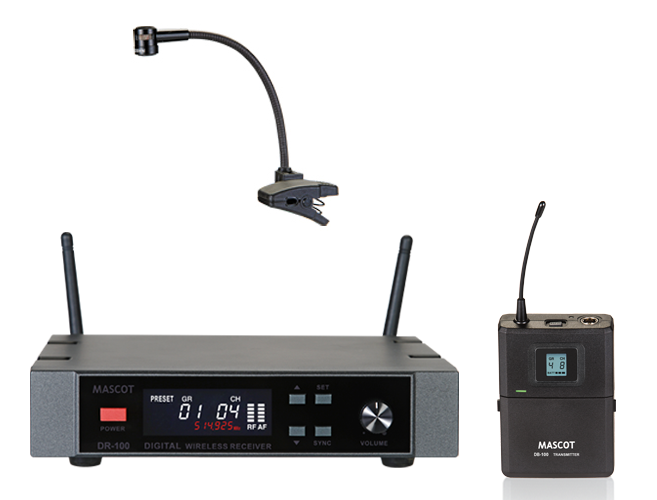

DR-100 / DB-100 Instrument System
DR-100 Receiver /DB-100 Bodypack/ SM-11 Instrument Microphone
-

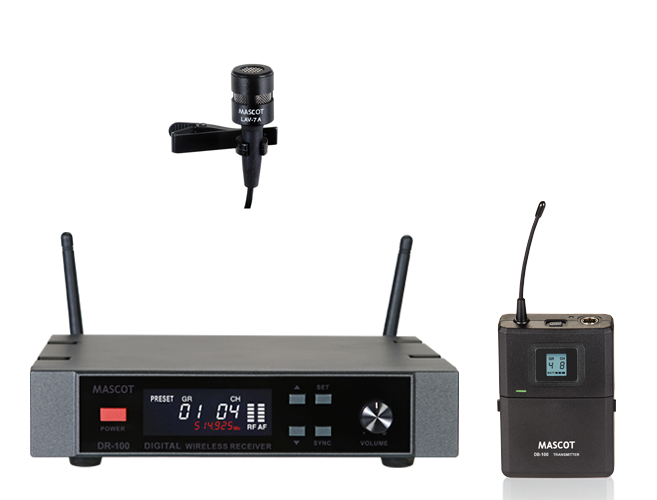

DR-100 / DB-100 Lavalier System
DR-100 Reciever / DB-100 Bodypack Transmitter / Lav-7a Lavalier Microphone
